A Fascinating Look at the Intricacies of USB Technology

Modern technology practically revolves around USB, but what do you really know about what goes on inside the cables and connectors? Let’s explore some of these minute details and see if we can achieve a new appreciation for this technology.

The Technology Behind USB

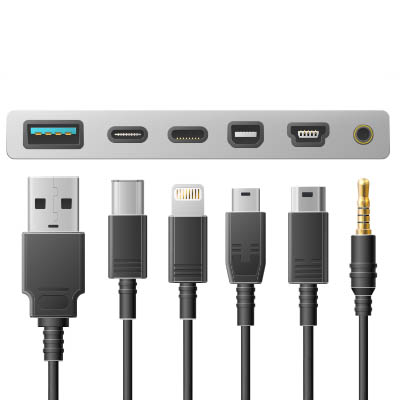

The USB stick or port might seem simple and straightforward, but it’s a lot more complicated than it might appear at first glance. Here’s what it looks like on the inside:

The Shell/Shielding - The sturdy metal casing you see on the outside.

The shell/shielding performs two jobs; it protects the internal pins from getting bent while also grounding the connection so it doesn’t get zapped by electricity.

The Insulator - The insulator is inside the metal shell. It’s the plastic component, often colored (black for USB 2.0, blue for USB 3.0, teal or red for even faster versions!).

This piece holds the contact pins in the right place and prevents them from touching each other; if they did, it could cause a short circuit.

The Pins/Contacts - these metal strips provide pathways for electricity and data. In your typical USB-A and USB-B connector, there are four pins:

• VBUS (Voltage Bus) - This carries the power. Most standard USBs operate on 5 volts, enough to charge your phone or power small peripherals.
• D- (Data Down) - One of the two wires used for transferring data.
• D+ (Data Up) - Used to transfer data. These two lines work together through differential signaling, which cancels out noise and interference, ensuring your data arrives safely.
• GND (Ground) - This completes the electrical circuit and provides a return path for the current.

Newer standards like USB-C have more pins (up to 24) to handle faster data speeds, more power, and even alternate modes like video output.

How USB Operations Work

When you plug a USB device into a host (for example, plugging a flash drive into your computer), a simple exchange takes place:

1. Connection & Detection - The host recognizes that something has been plugged in.
2. Enumeration - This is where the host determines the device’s identity and capabilities. The host will then assign it a unique address on the bus. It’s a quick interaction.
3. Data Transfer - Once the devices know each other, data can flow. Information is sent serially, a little at a time, but quickly enough, over the D+ and D- lines.
4. Power Delivery - The VBUS also provides power while this whole exchange is taking place.

This whole process occurs in a total of milliseconds.
